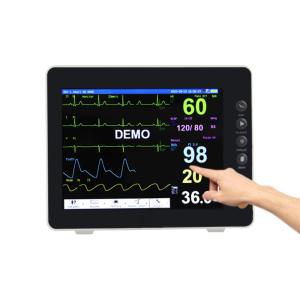

● 8" color TFT LCD screen, resolution 800*600
● Waterproof design, resistance to dropping (1 meter)
● Support external 13-20V DC power, continuously working for 5.5 hours above on battery backup, full charge with 2.5 hours, suitable for Ambulance, Emergency Transport
● Display mode: Big font, trends review, 7 leads ECG waveform on same screen, and etc
● 15 kinds of arrhythmia analysis, 15 kinds of drug concentration analysis
● Anti-electro surgical unit (300W), anti-defibrillation (360J), suitable for Operating Room, General Ward
● Digital SpO2 technology, excellent anti- interference performance, low perfusion (0.1%)
● USB data output with software to view data on computer
Technical parameters
| ECG |
| Lead | Standard 3/5 lead |
| Lead Mode | 5 Leads (RA, LA, LL, RL,V) |
| Lead Selection | I, II, III, avR, avL, avF, V |
| Lead Mode | 3 Leads (RA, LA, LL) |
| Lead Selection | I, II, III, |
| Gain | 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV |
| HR and Alarm Range | Adult: 15 ~ 300 bpm Ped/Neo: 15 ~ 350 bpm |
| Accuracy | ±1% or±1bpm, which is greater |
| Resolution | 1 bpm |
| Sensitivity | > 200 (uVp-p) |
| Differential Input Impedance | > 5 MΩ |
| Bandwidth | Surgery 1 ~ 20 Hz Monitor 0.5 ~ 40 Hz Diagnostic 0.05 ~130 Hz |
| CMRR: | Monitor > 100 dB Operation > 100 dB Diagnosis > 90 dB |
| Electrode Offset Potential: | ±300mV |
| Range: | ±2 mV ~ ±700 mV |
| Width: | 0.1 ms ~ 2 ms |
| Rise time: | 10 us ~ 100 us |
| ST Segment Monitoring Range: | Measurement Range: -2.0 ~ +2.0 mV Measurement Accuracy: -0.8 ~ +0.8 mV Measurement Error: ±0.02 mV or ±10% |
| SPO2 |
| Measure range | 0-100% |
| Resolution | 1% |
| Accuracy | ±2% (70-100%) |
| Pulse Rate | 20-300 BPM |
| Resolution | 1BPM |
| Accuracy | ±3BPM |
| NIBP |
| Work Mode | Manual,Automatic, STAT |
| Method: | Oscillometric |
| Measuring Interval in Auto Mode: | 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min) |
| Measuring Period in STAT Mode: | 5 Min |
| Pulse Rate Range: | 40 ~ 240 bpm |
| Measuring and Alarm Range: |
| Adult | SYS 40 ~ 270 mmHg DIA 10 ~ 215 mmHg MEAN 20 ~ 235 mmHg |
| Pediatric | SYS 40 ~ 200 mmHg DIA 10 ~ 150 mmHg MEAN 20 ~ 165 mmHg |
| Neonatal | SYS 40 ~ 135 mmHg DIA 10 ~ 100 mmHg MEAN 20 ~ 110 mmHg |
| Static Pressure Range: | 0 ~ 300 mmHg |
| Static Pressure Accuracy: | ±3mmHg |
| Accuracy: | Maximum Average Error ±5mmHg Maximum Standard Deviation ±8mmHg |
| Over pressure Protection: | Adult Mode: 300 mmHg Pediatric Mode: 240 mmHg Neonatal Mode: 150 mmHg |
| RESP |
| Method: | Impedance Between RA-LL or RA-LA |
| Measuring Impedance Range: | 0.3~3 Ω |
| Base line Impedance Range: | 200~4 KΩ |
| Bandwidth: | 0.1~2.5Hz |
| Measuring and Alarm Range: | Adult: 2 ~ 120 BrPM Neo/Ped: 2 ~ 150 BrPM Resolution: 1 BrPM Accuracy: ±2 BrPM Apnea Alarm: 10 ~ 40 S |
| TEMP |
| Applicable Temperature Sensor: | YSI, CYF |
| Channel: | 1 |
| Measure range | 0-50ºC |
| Resolution | ±0.1 ℃ |
| Accuracy | ±0.1 ℃ (Do not including sensor error) |
